Square drive hydraulic torque wrenches are widely used because of versatility and durability. Any industrial impact socket can be used with these wrenches enabling them to be the go to choice for millwrights, maintenance and mechanical workers. Used in the power generation, mining, quarry, construction, steel and paper industries. TorsionX square drive tools are known for their durability, and made in the USA quality dependability.

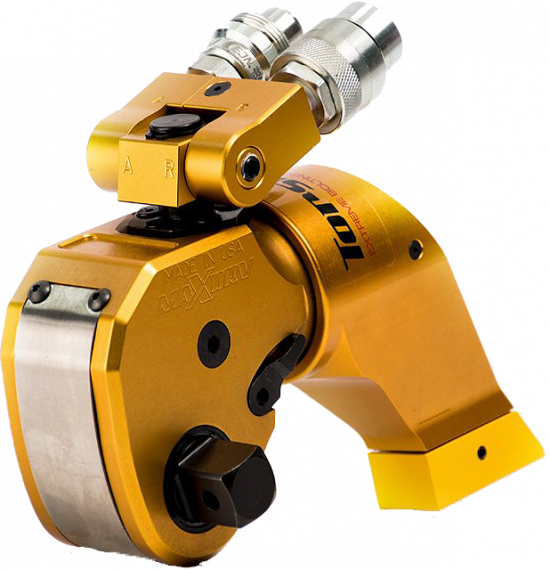

The MaxDrv Series Hydraulic Torque Wrenches can produce a high torque output from a small versatile tool. Offering 5 models, your bound to find an MaxDrv Square Drive Wrench to suit your application needs. Check out the Tool Model/Spec Chart below to find the tool that fits your requirements.
Available models: .7MD, 1MD, 3MD, 5MD, 10MD, 17MD
Model: .75MD – Square Drive: 3/4″ – Torque (Min-Max): 64 – 793 ft/lbs. – Unit Weight: 3.2 lbs.
Model: 1MD – Square Drive: 3/4″ – Torque (Min-Max): 125-1,318 ft/lbs. – Unit Weight: 5 lbs.
Model: 3MD – Square Drive: 1″ – Torque (Min-Max): 270 – 3,030 ft/lbs. – Unit Weight: 11 lbs.
Model: 5MD – Square Drive: 1-1/2″ – Torque (Min-Max): 538 – 5,480 ft/lbs. – Unit Weight: 18 lbs.
Model: 10MD – Square Drive: 1-1/2″ – Torque (Min-Max): 1,050 – 11,206/lbs. – Unit Weight: 32 lbs.
Model: 17MD – Square Drive: 2-1/2″ – Torque (Min-Max): 1,640 – 18,446/lbs. – Unit Weight: 61 lbs.
Model .
.75MD
1MD
3MD
5MD
10MD
17MD
Model: .75MD – L1* Dim: 3.90″ – L2* Dim: 5.08″ – L3* Dim: 3.32″ – H1* Dim: 1.62″ – H2* Dim: 2.56″ – H3* Dim: 3.02″ – H4* Dim: 4.29″ – W* Dim: 1.50″ – R1* Dim: .83″
Model: 1MD – L1* Dim: 4.83″ – L2* Dim: 6.80″ – L3* Dim: 4.59″ – H1* Dim: 1.97″ – H2* Dim: 2.88″ – H3* Dim: 3.77″ – H4* Dim: 4.97″ – W* Dim: 3.45″ – R1* Dim: 1.04″
Model: 3MD – L1* Dim: 6.18″ – L2* Dim: 8.16″ – L3* Dim: 5.34″ – H1* Dim: 2.63″ – H2* Dim: 3.72″ – H3* Dim: 4.88″ – H4* Dim: 6.46″ – W* Dim: 4.49″ – R1* Dim: 1.31″
Model: 5MD – L1* Dim: 7.47″ – L2* Dim: 9.73″ – L3* Dim: 6.41″ – H1* Dim: 3.16″ – H2* Dim: 4.93″ – H3* Dim: 5.97″ – H4* Dim: 7.71″ – W* Dim: 5.39″ – R1* Dim: 1.63″
Model: 10MD – L1* Dim: 9.36″ – L2* Dim: 12.22″ – L3* Dim: 8.02″ – H1* Dim: 3.95″ – H2* Dim: 5.75″ – H3* Dim: 7.35″ – H4* Dim: 9.04″ – W* Dim: 6.73″ – R1* Dim: 2.03″
Model: 17MD – L1* Dim: 10.85″ – L2* Dim: 14.20″ – L3* Dim: 9.19″ – H1* Dim: 4.63″ – H2* Dim: 6.98″ – H3* Dim: 8.50″ – H4* Dim: 10.36″ – W* Dim: 7.82″ – R1* Dim: 2.32″
