No other high capacity torque product is available on the market that provides as much torque output with such a limited height tool. Sockets are not required with these tools, the integral “cassette link” is attached to the piston that goes directly over the nut or bolt head. The TorsionX Low Clearance tools are used where other tools just won’t fit. Applications such as pipeline flanges, refinery and chemical plants equipment utilized these tools due to their size and light weight.

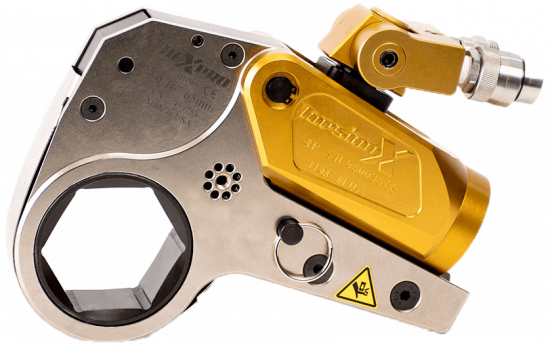

The HP Low Profile Hydraulic Torque Wrenches are small, versatile tools which produce high torque output. Offering 5 different Models, you’re bound to find an HP Low Clearance – Low Profile Wrench to suit your application needs.
Available models: 2HP, 4HP, 8HP, 14HP, 30HP
Model: 2HP – Ratchet Link Size Range: 3/4″ – 2-3/8″ – Torque (Min-Max): 162-1,714 ft/lbs. – Unit Weight: 3lbs. – Ratchet Link Weight: 4 lbs
Model: 4HP – Ratchet Link Size Range: 1-5/16″ – 3-1/8″ – Torque (Min-Max): 439-4,500 ft/lbs. – Unit Weight: 5lbs. – Ratchet Link Weight: 9 lbs
Model: 8HP – Ratchet Link Size Range: 1-1/2″ – 4-1/8″ – Torque (Min-Max): 762-8,100 ft/lbs. – Unit Weight: 8lbs. – Ratchet Link Weight: 16 lbs
Model: 14HP – Ratchet Link Size Range: 2″ – 4-5/8″ – Torque (Min-Max): 1,245-13,443 ft/lbs. – Unit Weight: 13lbs. – Ratchet Link Weight: 26 lbs
Model: 30HP – Ratchet Link Size Range: 3-1/8″ – 6-7/8″ – Torque (Min-Max): 3,050-30,500 ft/lbs. – Unit Weight: 27lbs. – Ratchet Link Weight: 70 lbs
Model: 2HP – L* Dim: 7.32″ – H1* Dim: 5.26″ – H2* Dim: 4.12″ – W1* Dim: 1.25″ – W2* Dim: 2″
Model: 4HP – L* Dim: 9.72″ – H1* Dim: 7.85″ – H2* Dim: 5.71″ – W1* Dim: 1.65″ – W2* Dim: 2.6″
Model: 8HP – L* Dim: 11.87″ – H1* Dim: 8.43″ – H2* Dim: 6.95″ – W1* Dim: 2.08″ – W2* Dim: 3.27″
Model: 14HP – L* Dim: 14.24″ – H1* Dim: 9.41″ – H2* Dim: 8″ – W1* Dim: 2.52″ – W2* Dim: 3.88″
Model: 30HP – L* Dim: 17.05″ – H1* Dim: 12.40″ – H2* Dim: 11.22″ – W1* Dim: 3.35″ – W2* Dim: 5.16″
