Hydraulic Torque Wrench Pumps

Hydraulic Torque Wrench Pumps

Assembled in the USA. Available for Sale and Rent.

At Maxpro, we offer sales, rental, leasing, and full service on a complete range of torque pumps and associated equipment.

All pumps are 10,000 PSI, and are available in electric/hydraulic or pneumatic/hydraulic operation. All pumps are made in the USA.

Let Maxpro repair your pumps and calibrate your pump gauges.

Available models: Single-Port Power Pack: MP-115, Hydraulic Torque Wrench Pumps Multi-Port Power Pack: MP-115-4, Single-Port Power Pack: MP-AIR, Mini Single-Port Power Pack: MP-Mini, Three-Stage Power Pack: MP-Cool, Hydraulic Hose

Single-Port Power Pack: MP-115

Two speed high performance pump
External adjustable precision pressure regulator
Retract internal pressure relief valve for tool protection
Remote control assembly
External oil reservior site glass
Includes 10,000 PSI Gauge

Specifications

Voltage: 115 (50 Hz.)
Current: 20 Amps
Power: 1-1/8 HP
Speed: 12,000 RPM
Maximum oil flow: 704 cubic inches per minute
Oil reservoir: 2 Gallons
Overall dimensions: 17.14″ X 9.5″ X 18.12″
Weight: 58 lbs (without oil)

Multi-Port Power Pack: MP-115-4

Runs up to 4 hydraulic torque wrenches at one time
Two speed high performance pump
External adjustable pressure regulator
Retract internal pressure relief valve for tool protection
Remote control assembly
Includes 10,000 PSI Gauge

Specifications

Voltage: 115 (50 Hz.) (MP-220-4 supports 220 volts)
Current: 20 Amps
Power: 1-1/8 HP
Speed: 12,000 RPM
Maximum oil flow: 704 cubic inches per minute
Oil reservoir: 2 Gallons
Overall dimensions: 17.14″ X 9.5″ X 18.12″
Weight: 61 lbs (without oil)

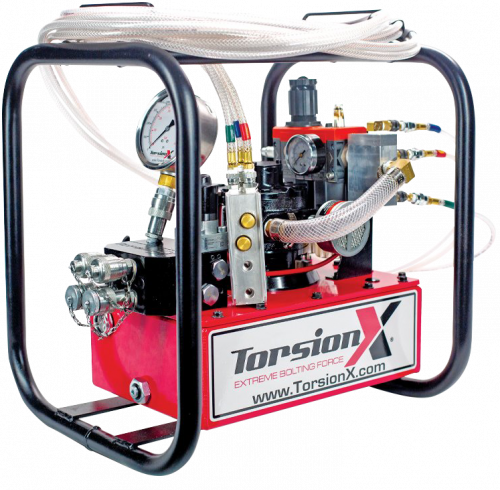

Single-Port Power Pack: MP-AIR

Powerful 3 HP motor starts under load
External adjustable precision pressure regulator
Retract internal pressure relief valve for tool protection
25 foot remote control assembly
Includes 10,000 PSI Gauge

Specifications

Power: 3 HP
Speed: 12,000 RPM
Maximum oil flow: 620 Cu.In.
Air Operating Pressure: 30 CFM @ 80 PSI
Oil reservoir: 2 Gallons
Overall dimensions: 16.55″ X 9.5″ X 19.83″
Weight: 81 lbs (without oil)

Mini Single-Port Power Pack: MP-Mini

Two speed general duty pump
External adjustable pressure regulator
Retract internal pressure relief valve for tool protection
Remote control assembly
Includes 10,000 PSI Gauge

Specifications

Voltage: 110 (50 Hz.) (MP-Mini-220 supports 220 volts)
Current: 13 Amps
Power: 1 HP
Speed: 4,000 RPM
Maximum oil flow: 300 cubic inches per minute
Oil reservoir: 1.25 Gallon
Overall dimensions: 13.82″ X 13.13″ X 16.62″
Weight: 51 lbs (without oil)

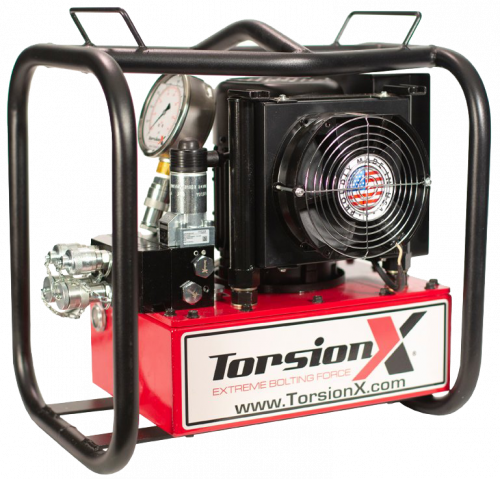

Three-Stage Power Pack: MP-Cool

Operates up to 2 hydraulic torque wrenches at one time
Built in heat exchanger for low temperature operation during continuous use
External adjustable pressure regulator
Reor tool protection
Remote low voltage (24 volt) pendant operator assembly (20 ft. line)
Includes 10,000 PSI Gauge

Specifications

Voltage: 115 (60 Hz.) (Available in 220 volts)
Current: 13.1 Amps
Power: 1-1/2 HP
Maximum oil flow: 500 cubic inches per minute
Oil reservoir: 1-1/2 Gallons
Overall dimensions: 11.8″ X 14.8″ X 17.9″
Weight: 60 lbs (without oil)

Hydraulic Hose

15 Foot Twin line Hose complete with 1/4″ NPT Quick Coupler and Burst Guards

Twin line hoses are bond together
Working pressure rated up to 10,000 PSI
Maximum burst pressure of 40,000 PSI
UV resistant – does not deteriorate
Filled with oil
Suitable for general hydraulics, bolting torquing, and jacking

Already Own a RAD® Torque Wrench?

Maxpro is an authorized US RAD® repair & calibration center. Talk with an Expert.
