E-RAD Blu S

E-RAD Blue S Has a Built-in Transducer for Increased Accuracy

Introducing the newest addition to RAD’s E-RAD BLU line – the E-RAD BLU-S. This electronic torque wrench is equipped with a transducer for unparalleled accuracy and operator identification for traceability. Plus, it has pass/fail indicators on both sides and password protection for controlled and accurate torquing.

All E-RAD® Electronic Torque Wrenches are sold as a Kit which include the following:

E-RAD® Torque Wrench
Standard Reaction Arm with Retaining Ring
15′ Controller Cables
Controller Box
Users Manual and Torque/PSI Chart

You can order special reaction arms here to ensure correct reaction for different applications.

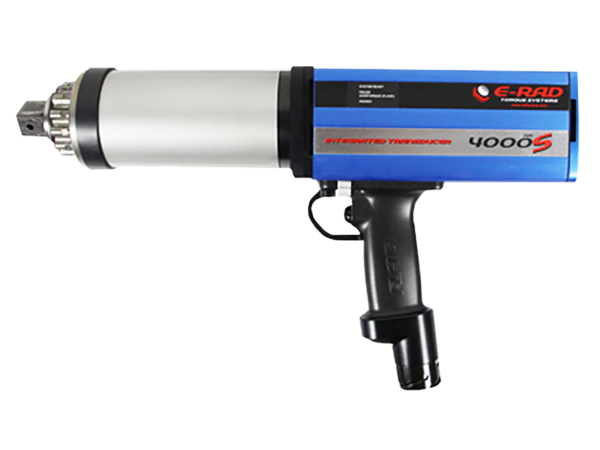

Available models: 700-S, 3000-S Comp, 4000-S, 6000-S, 7500-S, 11K-S, 3000-M, 3400-M,

E-RAD Blu S Specifications

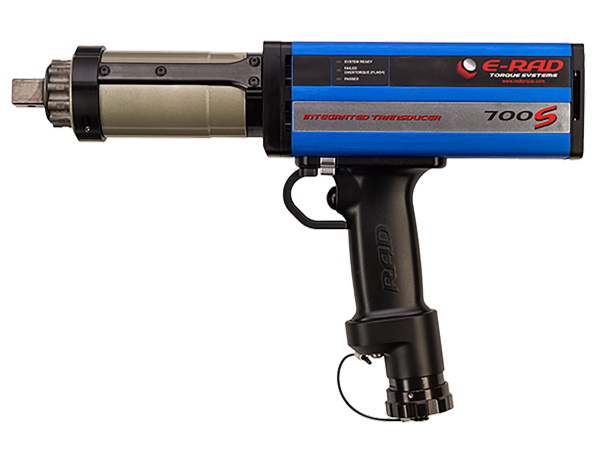

Part No.: 30079 – Tool Model: E-RAD BLU 700-S – Drive Size: .75 inch – Torque (L-H): 100-700 ft/lbs. – RPM: 15 – Weight: 13 lbs – Noise Level: 75 db

Part No.: 28836 – Tool Model: E-RAD BLU 2500-S COMP – Drive Size: 1 inch – Torque (L-H): 200-2500 ft/lbs. – RPM: 5 – Weight: 19 lbs – Noise Level: 75 db

Part No.: 31190 – Tool Model: E-RAD BLU 3000-S – Drive Size: 1 inch – Torque (L-H): 500-3000 ft/lbs. – RPM: 5 – Weight: 24.5 lbs – Noise Level: 75 db

Part No.: 31191 – Tool Model: E-RAD BLU 6000-S – Drive Size: 1.5 inches – Torque (L-H): 1000-6000 ft/lbs. – RPM: 2.1 – Weight: 30 lbs – Noise Level: 75 db

Part No.: 31192 – Tool Model: E-RAD BLU 7500-S – Drive Size: 1.5 inches – Torque (L-H): 1500-8000 ft/lbs. – RPM: 1.5 – Weight: 34 lbs – Noise Level: 75 db

Part No.: 29314 – Tool Model: E-RAD BLU 11K-S – Drive Size: 1.5 inches Torque (L-H): 3000-11,000 ft/lbs. – RPM: 1.5 – Weight: 44 lbs – Noise Level: 75 db

Part No.

30079

28836

31190

31191

31192

29314

Tool Model

E-RAD BLU 700-S

E-RAD BLU 2500-S COMP

E-RAD BLU 3000-S

E-RAD BLU 6000-S

E-RAD BLU 7500-S

E-RAD BLU 11K-S

Drive Size

.75 inch

1 inch

1.5 inches

Torque (Low – High)

100 – 700 ft/lbs.

200 – 2500 ft/lbs.

500 – 3000 ft/lbs.

1000 – 6000 ft/lbs.

1500 – 8000 ft/lbs.

3000 – 11,000 ft/lbs.

RPM

2.1

1.5

Weight

13 lbs.

19 lbs.

24.5 lbs.

30 lbs.

34 lbs.

44 lbs.

Noise Level

75 db

E-RAD BLU 700-S

Dimension A
14.96 inches

Dimension B
2.84 inches

Dimension C
3.03 inches

Dimension D
10.65 inches

E-RAD BLU 2500-S COMP

Dimension A
16.21 inches

Dimension B
3.41 inches

Dimension C
3.03 inches

Dimension D
10.65 inches

E-RAD BLU 3000-S

Dimension A
17.76 inches

Dimension B
4.0 inches

Dimension C
3.48 inches

Dimension D
11.29 inches

E-RAD BLU 6000-S

Dimension A
17.71 inches

Dimension B
4.35 inches

Dimension C
3.48 inches

Dimension D
11.29 inches

E-RAD BLU 7500-S

Dimension A
18.53 inches

Dimension B
4.8 inches

Dimension C
3.48 inches

Dimension D
11.29 inches

E-RAD BLU 11K-S

Dimension A
44 inches

Dimension B
19.81 inches

Dimension C
5.21 inches

Dimension D
11.29 inches

Already Own a RAD® Torque Wrench?

Maxpro is an authorized US RAD® repair & calibration center. Talk with an Expert.

ISO/IEC 17025 A Accredited Calibration Laboratory

888-315-0175
