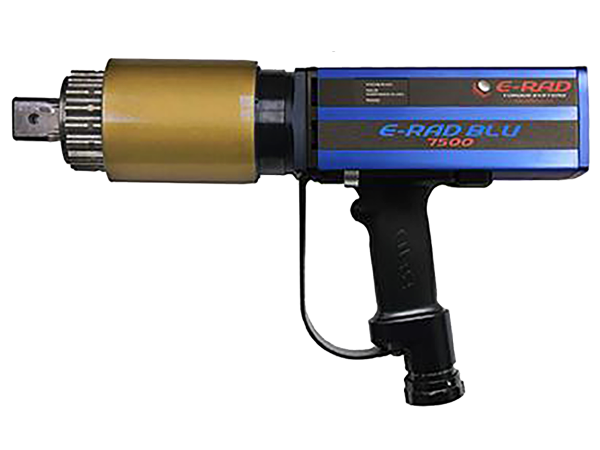

E-RAD 7500 Electric Torque Wrench Kit

1-1/2" Square Drive Series

E-RAD 7500 Electric Torque Wrench Kit

Available for Sale or Rent

The highest capacity tool in the E-RAD line of equipment. A relatively small tool considering this unit can produce 7500 foot pounds of calibrated, accurate torque. Designed for heavy duty use in extreme industrial applications.

  • LED Light signals pass or fail
  • Lightweight Ergonomic Grip Handle
  • Internal Cooling Fan for continuous use
  • Extremely Low Noise Level: 75 db
  • Digital Push-Button Torque Selection
  • Torque and Angle Management
  • Digital Data Collection
  • Versatile Torque Range: 800 to 4,000 ft./lbs. (1080 to 5400 Nm.)
  • Calibrated traceable to NIST standards
  • Units supported: Ft./Lbs., Nm
  • Accuracy +/-5%, Repeatability +/-2%
Specifications
Tool Kit/Dimensions
Reaction Arms

E-RAD 7500 & 10K Specifications

Part No. Tool Model Drive Size Torque (low-high) RPM Weight Noise Level
21984 E-RAD 7500 1-1/2 in. 1500-7500 ft/lbs. 1.5 32 lbs. 75 db
21989 E-RAD 10K 1-1/2 in. 2030-10000 Nm. 1.5 14.5 kg. 75 db

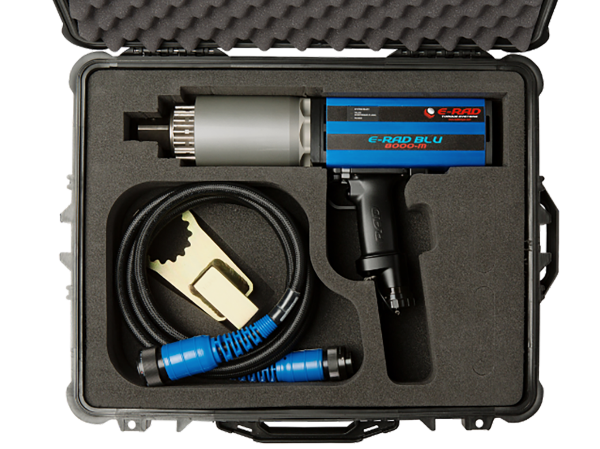

E-RAD Tool Kit Includes:

  • Calibrated Torque Wrench
  • Standard Reaction Arm

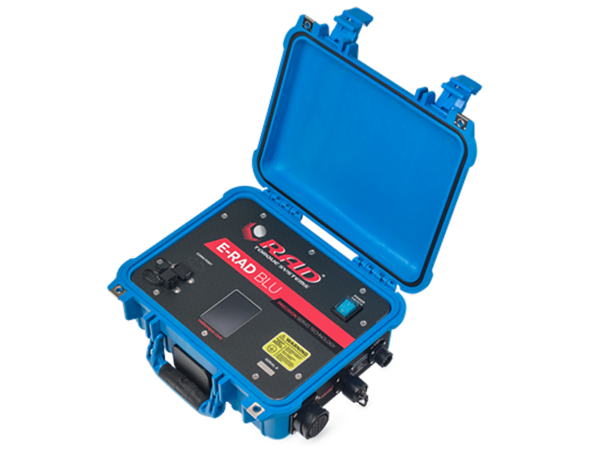

  • Control Box (Plastic or Steel, 120v or 220v)
  • Controller Cables (15ft standard, options available)
  • Calibration Chart/Certificate
  • Owner’s Manual

E-RAD 7500 Dimensions

E RAD 7500 diagram



E-RAD Set Up Diagram

 ERAD Controlbox Setup Diagram

Reaction Arms for E-RAD 7500 & 10K Torque Wrenches

contact btnIf you do not see a Reaction Arm that fits your needs, call us at 888-315-0175, or we can design a Custom Reaction Arm specific for your bolting application.
